7 String Pickup Humbucker Routing Template

The 1/2” MDF provides sturdy and consistent contact for precise routing, with ample surface area for optimal performance. With its added thickness, shimming is no longer necessary, simplifying the setup process. CNC cut to ensure accuracy, this reliable, accurate, and reusable template is a must-have tool for those who prioritize quality and efficiency.

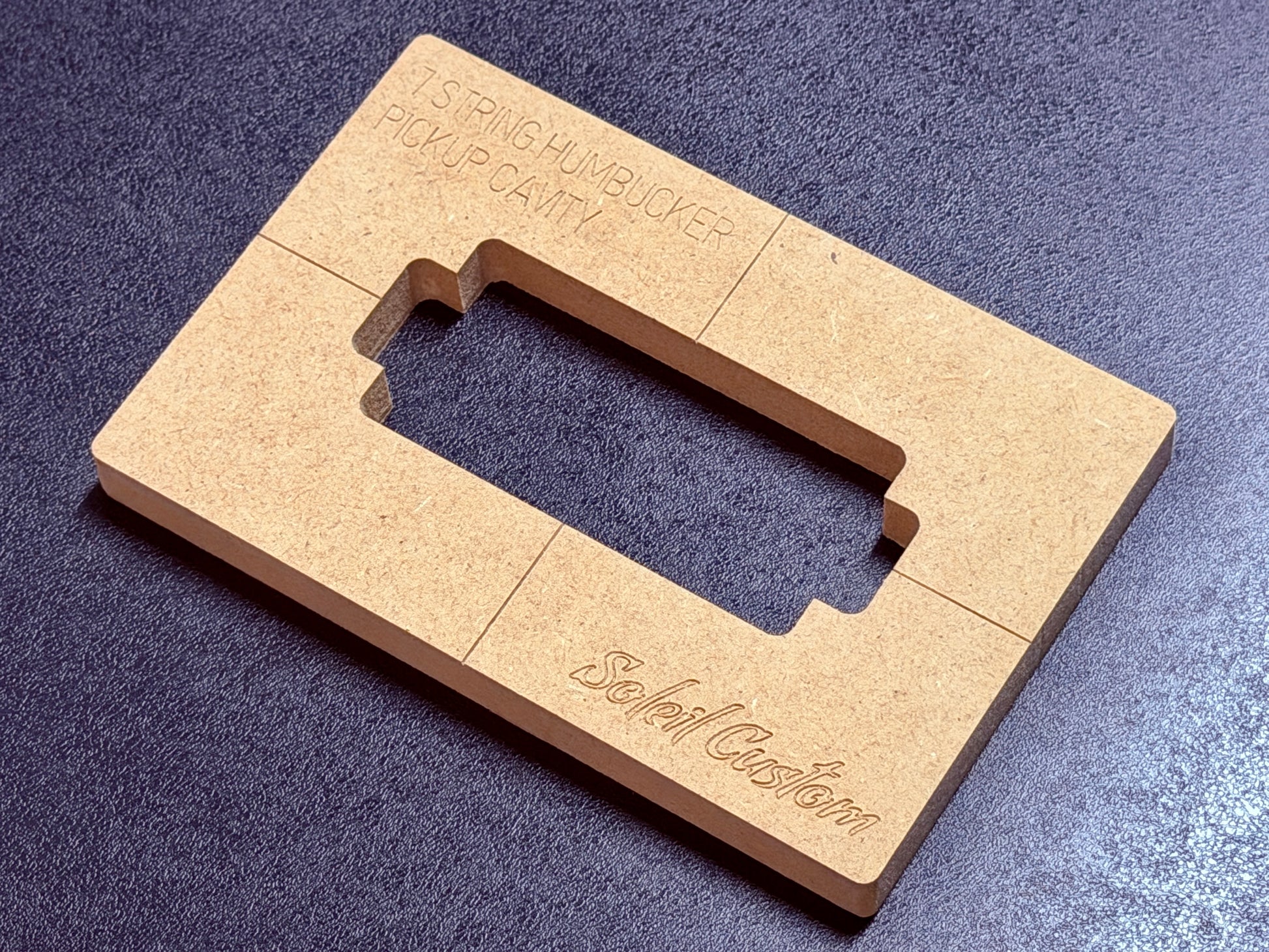

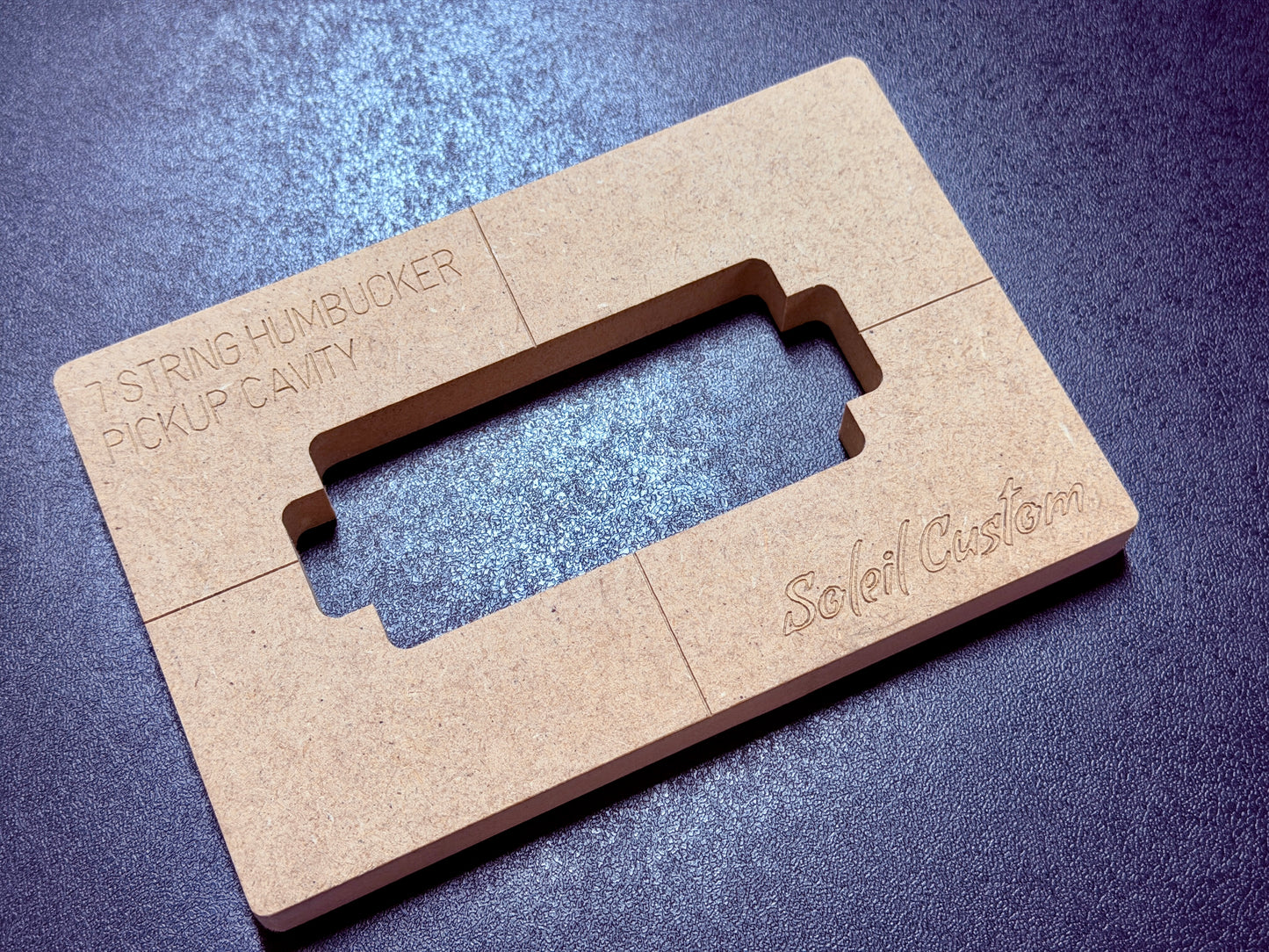

7 String Guitar Humbucker Routing Template

The 7 String Humbucker Routing Template ensures clean, professional cavity cuts for your guitar. Made from durable 1/2” MDF , it features engraved centerlines for precise alignment, making it an essential tool for accurate and repeatable routing.

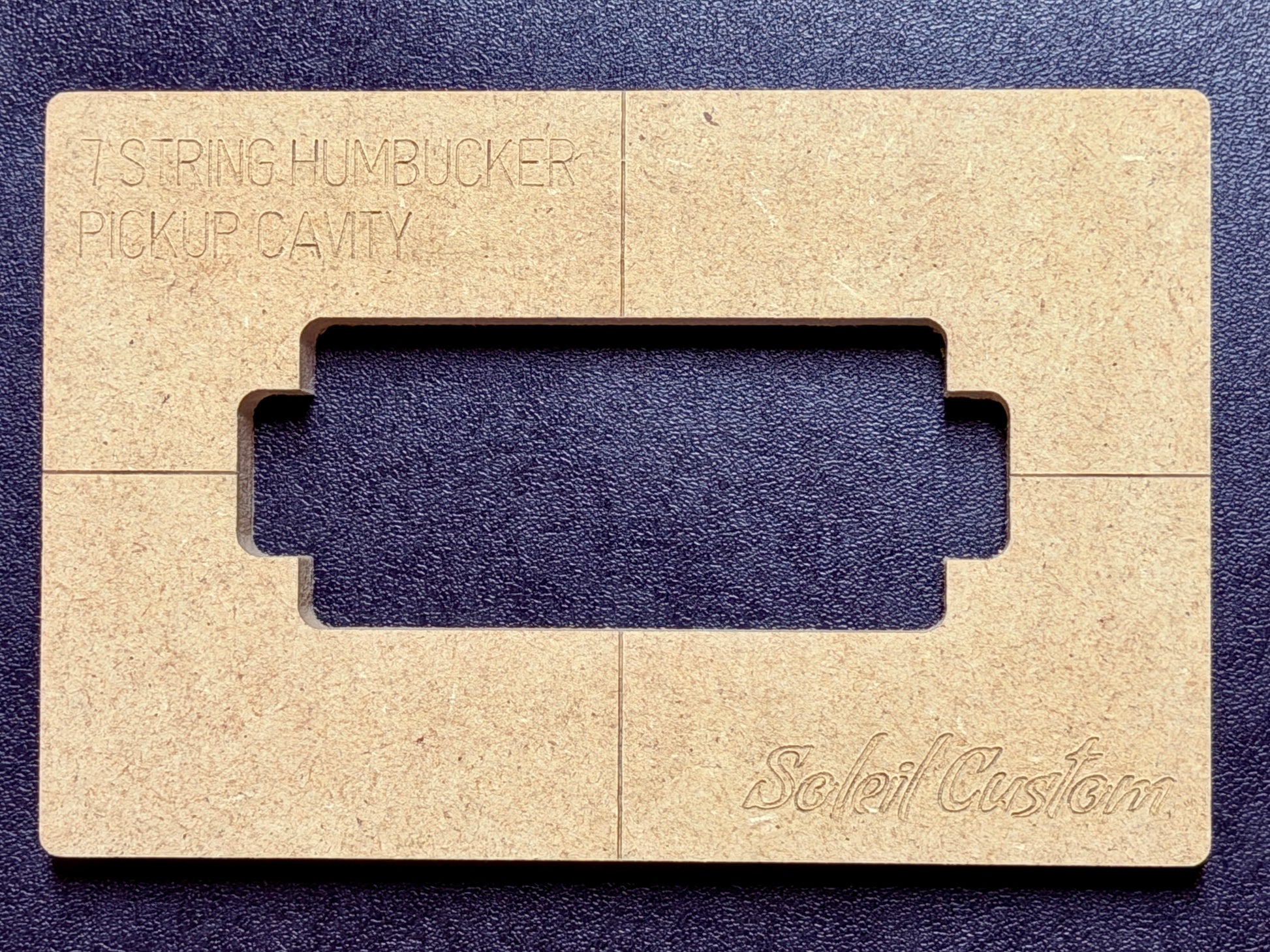

• Outer Template Dimensions: 5.875” x 3.875” (149.2mm x 98.4mm): Fits most standard guitar bodies.
• Inner Cavity Dimensions: Core: 3.27″ x  1.59″ (83.05mm x 40.38mm), Tabs: 3.9″ (99.06mm) Designed for open core 7 string tabbed humbuckers.
• Engraved centerlines for easy alignment.

Compatible Pickups

This template fits most 7 string tabbed humbucker pickups. Please ensure to verify your measurements before routing. Covered humbuckers may have larger housings than open core models, be sure to check fitment beforehand

• Confirmed Fit: Standard tabbed open core humbuckers from the following manufacturers: Seymour Duncan, DiMarzio (standard and F-spaced models), EMG.

Template Instructions

1. Align & Secure: Apply double-sided tape to the bottom of the template and align its centerlines with drawn centerlines on the guitar body.
2. Create a Starting Pocket: Remove the bulk of the material with a drill press or create a pilot hole large enough for the template routing bit to fit.
3. Make Shallow Passes: Lower the template routing bit into the pilot hole, making passes at incremental depths until reaching the desired depth.
